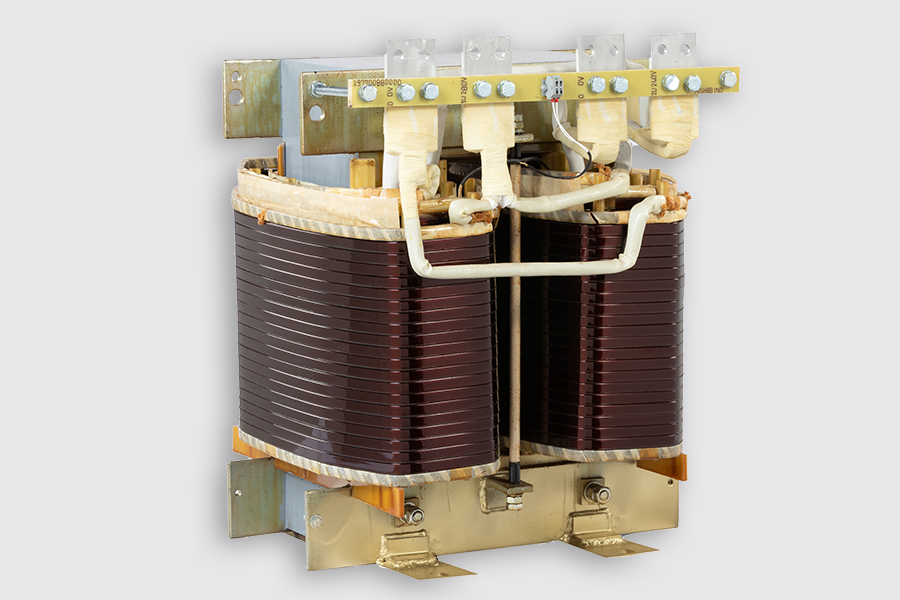

Buck-boost Transformer
In electrical power applications, a buck-boost transformer is a type of transformer that may either boost or lower voltage levels. Buck-boost transformers, in contrast to conventional transformers, are intended for situations that require modest voltage modifications rather than significant transformations. In order to ensure optimal performance and efficiency, these changes are essential when the supply voltage does not match the voltage rating required by the equipment. Buck-boost transformers ensure that electrical equipment operates as efficiently and optimally as possible by adjusting out-of-standard voltages.
Working Principle
The way that buck-boost transformers work is by either increasing or decreasing the input voltage by a tiny amount. This is achieved by carefully arranging the transformer windings to produce a series-opposing (buck) or series-aiding (boost) effect.
For example, the transformer can be set to "boost" the voltage if the input voltage is a little bit lower than intended. In contrast, it is possible to set it up to "buck" the voltage down to the desired level if the input voltage is somewhat higher than needed.
- Voltage Adjustment: Up to 20% of the nominal voltage is normally the little voltage adjustment that buck-boost transformers make. This adjustment aids in making up for voltage variations or drops that may arise from lengthy power lines or different loads.
- Applications for Single-Phase and Three-Phase Transformers: These transformers are adaptable and appropriate for a variety of applications. They are offered in single-phase and three-phase configurations.
- Compact Design: Because buck-boost transformers are smaller and more compact than normal transformers, they are perfect for installations with limited space.
- Efficiency: Buck-boost transformers are very efficient since they can only handle the voltage differential between the input and the intended output, not the full load.
- Cost-Effective: Compared to bigger transformers or voltage regulators, they are more affordable and provide a cost-effective alternative for small voltage corrections.
- Simple Installation: These transformers are simple to set up and install, and they frequently have adjustable mounting choices to suit a range of configurations.
- Protection: By providing stable operation and extending the life of delicate electronic devices, buck-boost transformers aid in shielding equipment from voltage fluctuations.
- Lighting Systems: In commercial and industrial environments, in particular, buck-boost transformers are utilized to ensure that lighting fixtures operate properly and at correct voltage levels.
- HVAC Systems: The proper voltage levels for HVAC (heating, ventilation, and air conditioning) equipment are maintained by these transformers.
- Motor Loads: Buck-boost transformers modify voltage levels to keep motors operating within their intended voltage range for maximum durability and performance.
- Renewable Energy Systems: The voltage levels in solar and wind power systems are matched by these transformers to the necessary input for inverters and other equipment.
- Telecommunications: For delicate telecom equipment, buck-boost transformers provide steady voltage levels.
