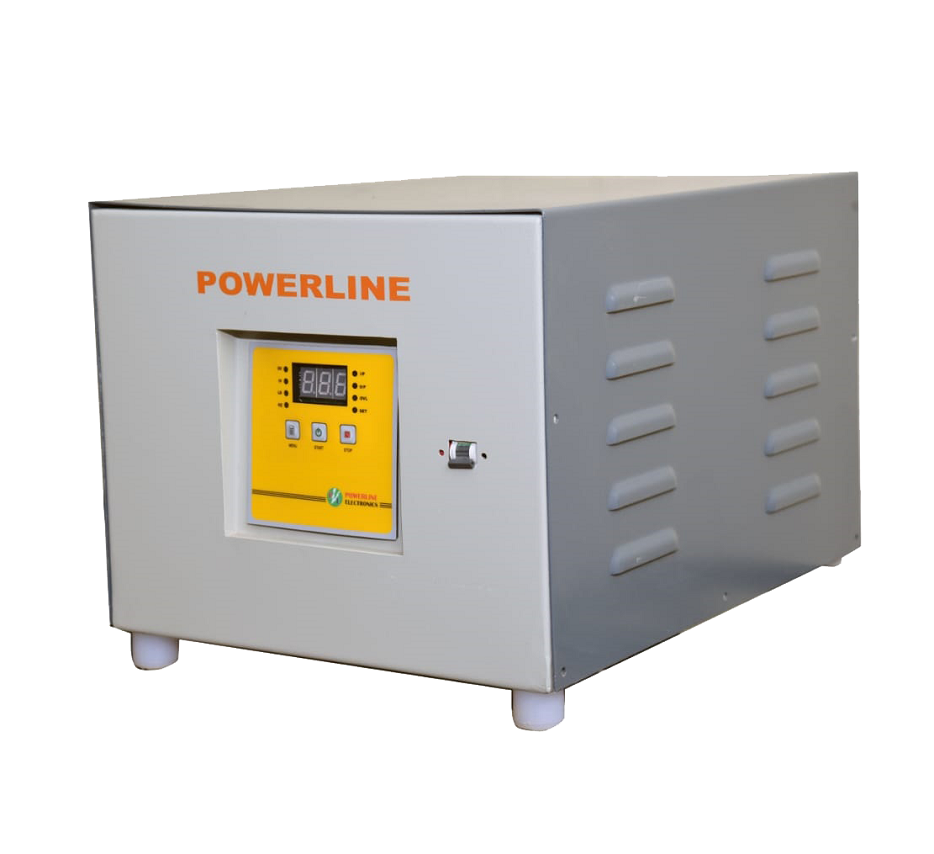

1 PHASE VOLTAGE STABILIZER (AIR COOL)
Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipment’s from high and low voltage.
- Offices
- School & Colleges
- Banking sector
- Finance Insurance
- Beauty Parlors
- Gym & fitness PCs
- Servers
- Photocopiers
- Home Theaters
- LCD and LED Sign Boards
- CNC
- Centralized Air-Conditioners
Front Panel Controls (PE-MODEL)
- LCD Display
- Auto / Manual select switch
- LCD Display digital meter to read input / output volts
- Increase / Decrease switch to adjust the output voltage in manual mode
Protections
- High voltage protection
- Low voltage protection
- Overload protection
- Short circuit protection
Most Suitable for
- CNC Machines
- Bio Medical Equipments
- Printing Machineries
- Cell Phone Networks
- Scientific Equipment
- Textile Machineries
- Large Computer Installations
| Technical Specification For 1PH Stabilizer | Details |
|---|---|
| Input Voltage Range | 170-270V AC, 50 Hz |
| Output Voltage | 230V AC 50 Hz 1 Phase |
| Output Voltage Adjustments | 220-240 AC in 1 Phase |
| Operating Frequency | 47 to 53 Hz |
| Output regulation | + 1% |
| Correction Speed | 60V/sec |
| Line regulation | + 2% |
| Load regulation | + 2% |
| Wave-form distortion | Nil |
| Power factor effect | Nil |
| Output wave-form | True reproduction of Input |
| Type of cooling | Oil Cooled |
| Mode of System | Fully Automatic / Manual |
| System Construction | As per IS standard |
| Efficiency | 98% |
| Response Time | 10 milli sec |
| Servo Motor Drive | rugged ac stepper synchronous motor |
