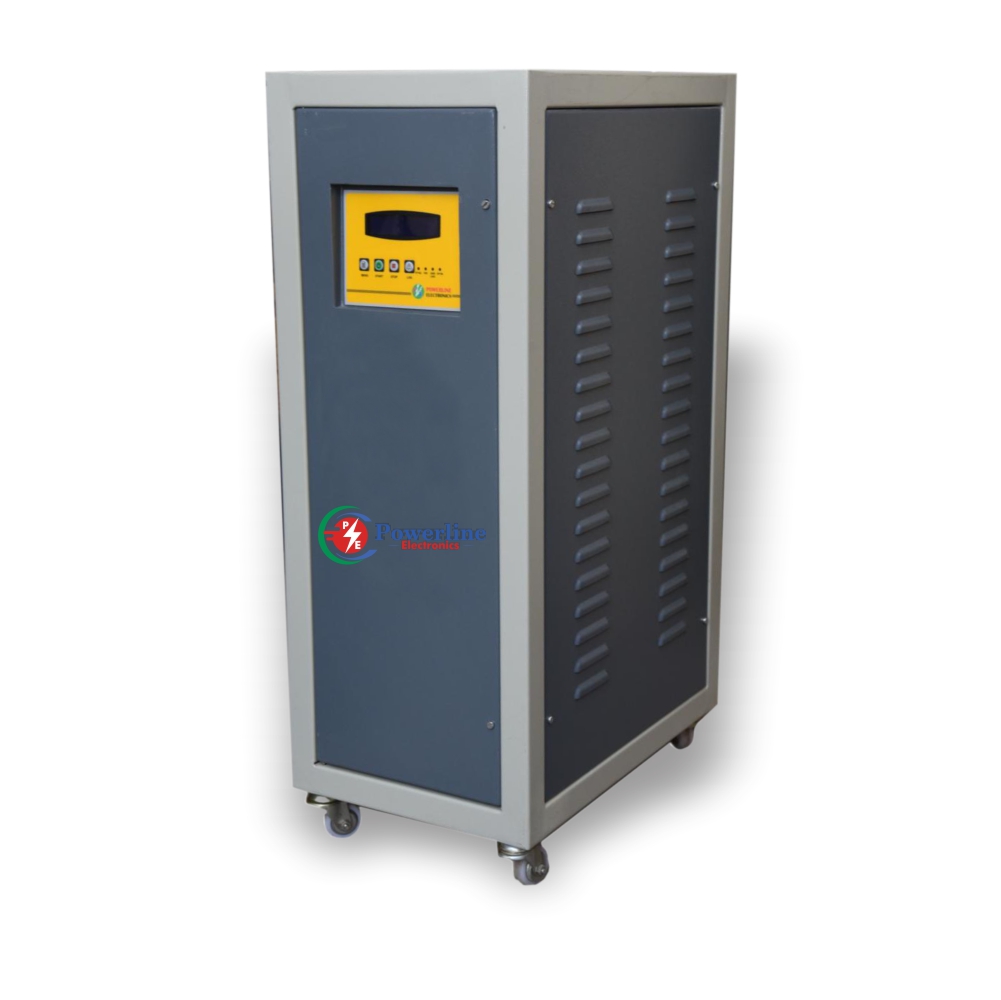

3 PHASE VOLTAGE STABILIZER (AIR COOL)
3 PHASE VOLTAGE STABILIZER (AIR COOLLED) UPTO 150KVA
Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipment’s from high and low voltage
All types of manufacturing units : Like : Solvent Plants, Oil Mills, Ginning & Pressing Factories, Chemical Industries, Food Industries, Rice Mills, Paper Mills, Fertilizer Plants, Daal Mills, Steel Industries, Cement Mills, Petrol Pumps etc.
Most Suitable for CNC Machines, Bio Medical equipment’s, Printing Machineries, Cell Phone Networks, Scientific Equipment's, Textile Machineries, Large Computer Installations
Also we are supplied surge, spike, harmonics filter for electronics equipment & Machineries
- Offices
- School & Colleges
- Banking sector
- Finance Insurance
- Beauty Parlors
- Gym & fitness PCs
- Servers
- Photocopiers
- Home Theaters
- LCD and LED Sign Boards
- CNC
- Centralized Air-Conditioners
Specially designed for sensitive loads Servo Air Cooled
- 3ph/1ph series provides
Specially designed for sensitive loads Servo Air Cooled -
3ph/1ph series provides Output voltage set ( 210-245V),
Output Low Voltage Cutoff Output High Voltage Cutoff,
Input Low on LCD Display Input High on LCD Display,
Sensitivity / Regulation, Auto Restart Time Over Load
Cutoff, CT full scale, Over load Cutoff Time On & Off
Delay Time, Display Scrolling – Auto / Manual Start / Stop
Buttons
- Input Overload Protection with MCB
- Input Short Circuit Protection with MCB
- Output Low Voltage Protection
- Output High Voltage Protection
- Single Phasing Prevention
- Output Electronic Overload Protection
- Audio Alarm for Protections
- Menu Key : To view parameters / settings
- Start Key : To switch ON output load / select the digit (SET Mode)
- Stop Key : To switch OFF output load / edit the selected digit
- Log Key : To view error log
- Reverse Phase Protections
- Input & Output U/V & O/V Voltage Trip
- Soft switches for auto manual control in
- Auto Manual Start Setting Facility
- Input Short Circuit Trip on 300%@250m.sec,
- Overload Trip at 110% At Rated Current
- Normal Operating Temp. 0 To 500 C.
- Operating Frequency 47 To 53
- Auto manual control drive operations.
- We have true RMS board Rs 485 Interface using.
- Servo Stablizer is totally Password Protected
| 40 mS Fast Correction |
| Earth Voltage Measurment |
| Neutral Missing Indication & Trip |
| Stall the Variac movement during Neutral Fault. |
| Domestic and Industrial Operation |
| Input Trip Mechanism with MCC |
| Easy and Flexible Menu Operation |
| 3 Window Over Load tripping mechanism, to match the load Pattern |
| Input and Output Low Voltage cutoff |
| Input and Output High Voltage cutoff |
| Low and High Frequency Cutoff |
| Phase reversal cut off |
| Auto and Menual Drive Option |
| Capicity | KVA - 3PH Domestic / Industrial model |
| Model | PED19MODEL |
| Input Voltage Range | 320--460V AC / 360--470V AC / 340--480V AC 3phase |
| Output Voltage | 400/415V AC 3PH - 230/240V AC 1PH |
| No. of phases | Three / Single phases |
| Speed of Correction | 60V per Second |
| Line Frequency | 47-53Hz. |
| Output Voltage Regulation | +1% |
| Type of Cooling | AIR COOLED Natural air cooling |
| Type | Unbalanced supply and Load conditions |
| Efficiency | >98% |
| Model | Industrial / Domestic Roboust |
| Wave form distortion | True Reproduction of Input Wave Form |
| Effect of Load power factor | Nil |
| Ambient Temperature | 0-45ºC |
| Duty Cycle | Continuous |
| Indications on each phase | DISPLAYED ON LCD DIAPLAY R,Y,B,N INPUT, OUTPUT, CURRENT, FREQUENCY 1PH/3PH |
| Metering | LCD display to read input and out put voltage.1Ph/3ph |
| Display | LCD / Digital of Input and out put Voltages, reasons Display Features also be provided over load frequency mismatch, low voltage high voltage |
| Regulation time | less than 60V per second complete one operating cycle |
| Operating Temperature | -10 to 55 Deggree Centigrade |
| Over Voltage Protection | Auto trip Features Enabled in the event of input voltage |
| Features and Protections | Protection class minimum IP 20 and Overload and Short circuit Protections enabled for internal with circuit breaker and MCB/ contactor. |
| Controls Enabled | Auto Manual Control, Over load trip Relay, Out put Low/High Cutt off , Out put Hight Frequency Cut off, |
| Indications | Mains ON indications, Out put On Indication, Input Fail Indications |
| Metering | We can read Voltages, Phase to phase – Phase to neutral, Current of each Phase shown on LCD Display, Alram is enabled, with buzzer |
| ERROR Log | LCD Diplay Shows The Error Log With Alarm For. Eg. R phase Input Voltage High – then Display Contneous Showing On Screen R phase I/P volt Hight. 100 Alarms messages Troubles to be Recorded in the Servo Stablizer with Alram Log history With Date Time stored the Stablizer |
| Neutral Missing Protections | Servo Stablizer Stop the work When neutal found missing |
| Earth Neutral Protection |
If Earth to neutral voltage increased then Servo Stablizer
out put will be Switched OFF, and Indication Alrarm Shows.
(Both Extra Features Neutral and Neutral Earth
Protections) if required then enables in program
Single phase preventer is disabled in domestic model individual phase cut off. |

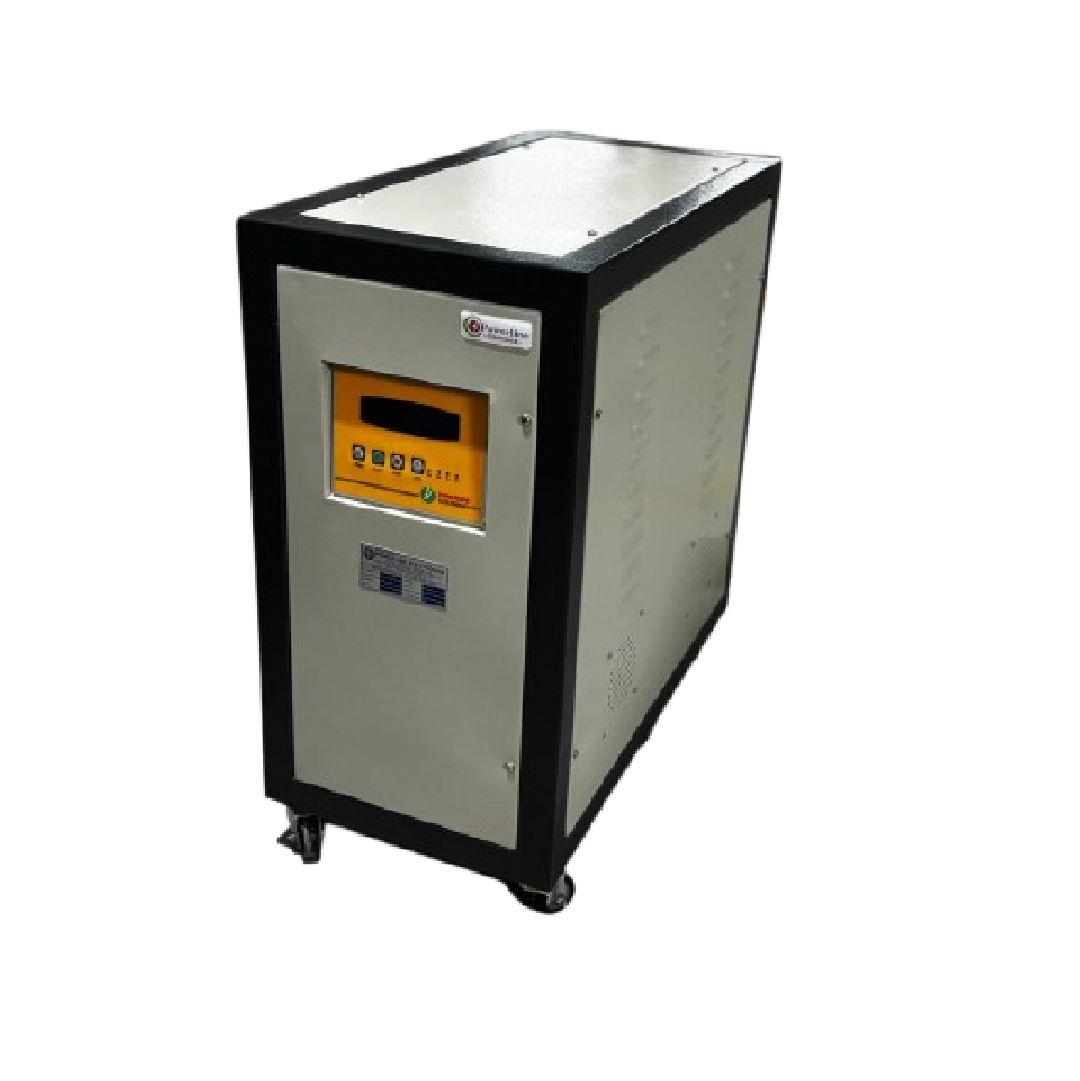

Related Product
